Automatic Prismatic Lithium Cell Sorting Machine

Name: Automatic Prismatic Lithium Cell Sorting Machine
Brand: XWELL
Price: 10000 USD

Brand Name : XWELL

Model Number : XW-BPS08

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 10000 - 15000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Order(Moq) : 1 set

Brand : XWELL

Input Voltage : AC220V/50Hz

Speed : 600 pcs/h

Test Parameter : AC internal resistance, open DC voltage

Power : <1000W

Internal Resistance Test : Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm

Voltage Test : Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV

Contact Now

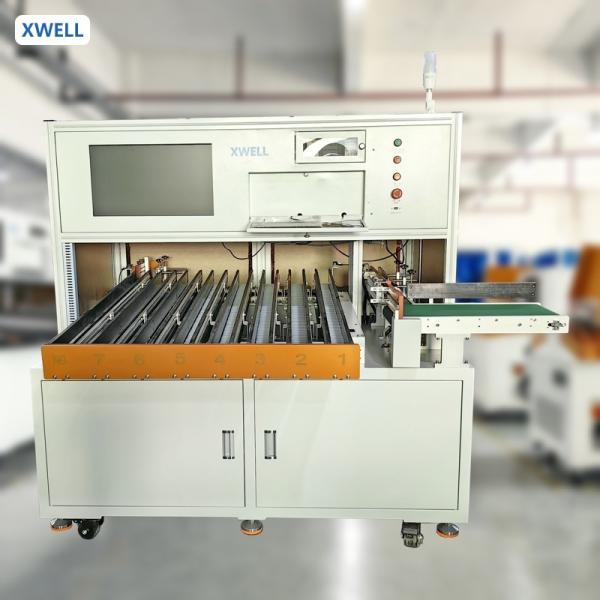

Automatic Prismatic Lithium Cell Sorting Machine

Main function:

Automatic Prismatic Cell Sorting machine, the main function is to test the voltage internal resistance of the prismatic lithium cells and automatically shift according to the set voltage internal resistance value

Product characteristics:

♦ Commissioning equipment is simple and easy to understand
♦ The manually paired battery pack is placed into the mold for the pairing inspection of the entire battery pack

♦ The feeding method manually piles the core and feed assembly line
♦ Hand inhaled automatically and 30 thickness core can be applied 30PCS

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

Prismatic Battery Cell Sorting Machine Details

Automatic Prismatic Lithium Cell Sorting Machine
